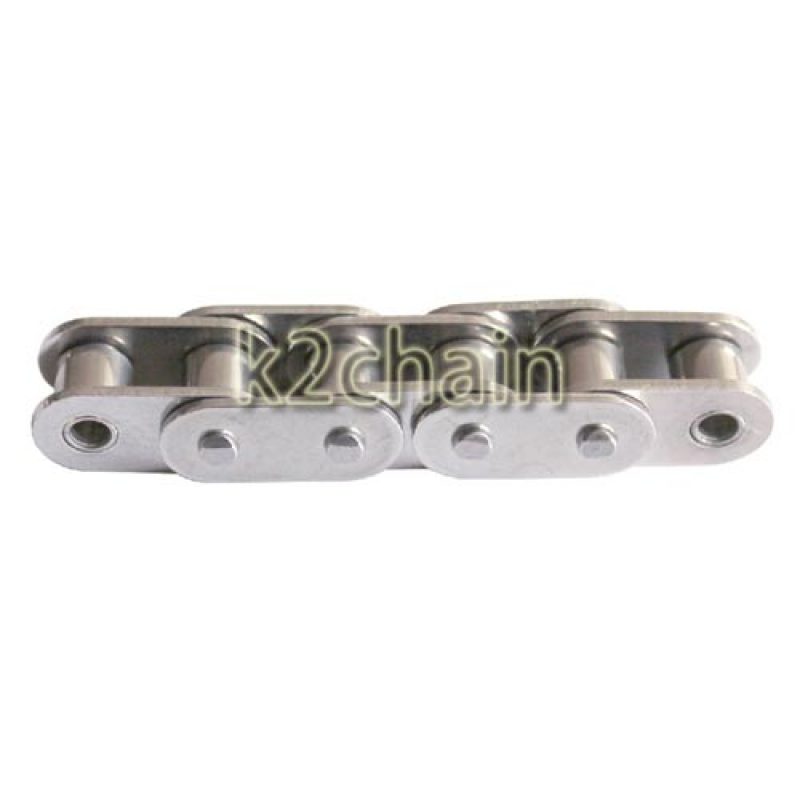

B系列直板滾子鏈條將傳動滾子鏈條的鏈板變更了直板形,直接將工件承載于鏈板之上進行輸送的鏈條。
特點·注意事項
由于鏈條的鏈板形狀為直板形,直接將工件承載于鏈板之上進行輸送的鏈條。
材質:不銹鋼、碳鋼。
鏈輪可使用標準滾子鏈輪。

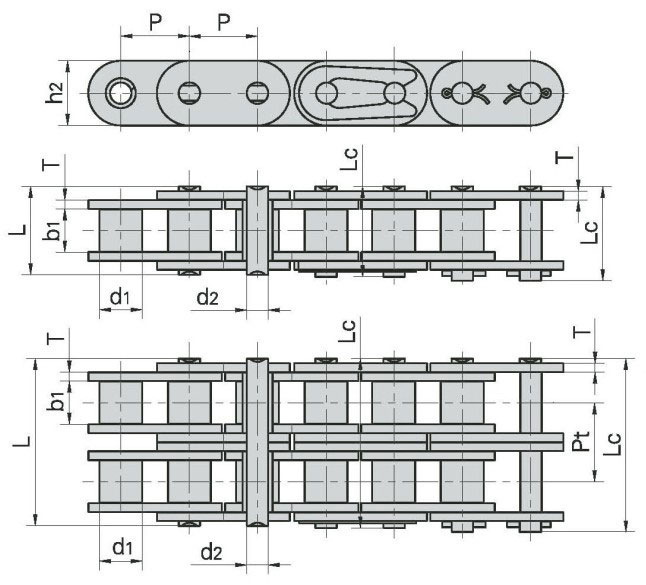

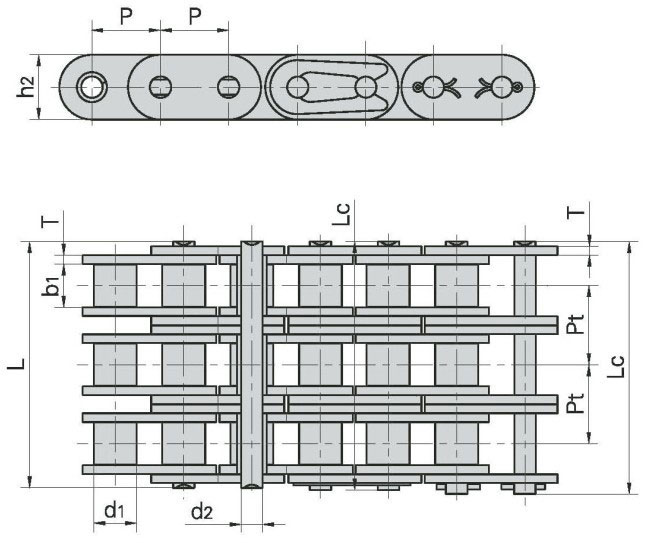

DIN/ISO鏈號 | 節距 | 滾子直徑 | 內節內寬 | 銷軸直徑 | 銷軸長度 | 銷軸長度 | 內鏈板高度 | 鏈板厚度 | 排距 | 極限拉伸載荷 | 平均拉伸載荷 | 每米長重 |
p | d1 max | b1 min | D max | L max | Lc max | h2 max | t/T max | Pt | Q min | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | kg/m | |
C08B-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 18/4091 | 19.5 | 0.80 | |
C10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.70 | 22.4/509. | 27.9 | 1.06 | |
C12B-1 | 19.05 | 12.07 | ’1.1.68 | 5.72 | 22.5 | 25.2 | 16.0 | 1.85 | 29/591 | 32.2 | 1.32 | |
C16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 39.1 | 21.0/24.0 | 4.15/3.1 | 60/13636 | 72.8 | 3.08/3.49 | |
C20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 4.5/3.5 | 95/21591 | 106.7 | 4.16 | |
C24B-1 | 38.1 | 25.40 | 25.40 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 160/36364 | 178.0 | 7.47 | |
C28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.1 | 69.5 | 36.7 | 7.5/6 | 200/45455 | 222.0 | 9.90 | |
C32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66.0 | 71 | 42 | 7/6 | 250/56818 | 277.5 | 10.45 | |
C08B-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.6 | 13.92 | 32/7273 | 38.7 | 1.45 |
C10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 37.5 | 14.7 | 1.7 | 16.59 | 44.5/10114 | 57.8 | 2 |
C12B-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42.0 | 44.7 | 16.0 | 1.85 | 19.46 | 57.8/13136 | 66.1 | 2.62 |
C16B-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68.0 | 71.0 | 21.0/24.0 | 4.15/3.1 | 31.88 | 106/24091 | 133 | 6.1/6.92 |
C20B-2 | 31.75 | 19.05 | 19.56 | 10.19 | 77.8 | 81.5 | 26.4 | 4.5/3.5 | 36.45 | 170/38636 | 211.2 | 8.23 |
C24B-2 | 38.1 | 25.40 | 25.40 | 14.63 | 101.7 | 106.2 | 33.2 | 6/4.8 | 48.36 | 280/63636 | 319.2 | 14.77 |
C28B-2 | 44.45 | 27.94 | 30.99 | 15.90 | 124.6 | 129.1 | 36.7 | 7.5/6 | 59.56 | 360/81818 | 406.8 | 19.82 |
C32B-3 | 50.8 | 29.21 | 30.99 | 17-81 | 124.6 | 129.6 | 42.0 | 7/6 | 58.55 | 450/102273 | 508.5 | 20.94 |
C08B-3 | 12.7 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.8 | 1.6 | 13.92 | 47.5/10795 | 57.8 | 2.1 |
C10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 54.1 | 14.7 | 1.7 | 16.59 | 66.7/15159 | 84.5 | 2.87 |
C12B-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 64.2 | 16.0 | 1.85 | 19.46 | 86.7/19705 | 101.8 | 3.89 |
C16B-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.8 | 102.9 | 21/24 | 4.15/3.1 | 31.88 | 160/36364 | 203.7 | 9.12/10.34 |
C20B-3 | 31.75 | 19.05 | 19.56 | 10.19 | 114.2 | 117.9 | 26.4 | 4.5/3.5 | 36.45 | 250/56818 | 290 | 11.34 |
C24B-3 | 38.1 | 25.40 | 25.40 | 14.63 | 150.1 | 154.6 | 33.2 | 6/4.8 | 48.36 | 425/96591 | 493 | 22.10 |
C28B-3 | 44.45 | 27.94 | 30.99 | 15.90 | 184.2 | 188.7 | 36.7 | 7.5/6 | 59.56 | 530/120454 | 609.5 | 29.64 |
C32B-3 | 50.8 | 29.21 | 30.99 | 17.81 | 183.2 | 188.2 | 42.0 | 7/6 | 58.55 | 670/152273 | 770.5 | 31.27 |
